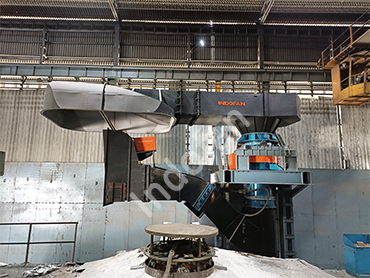

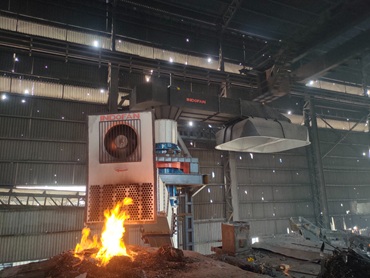

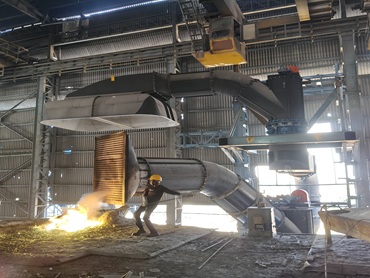

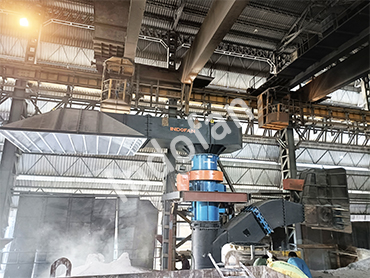

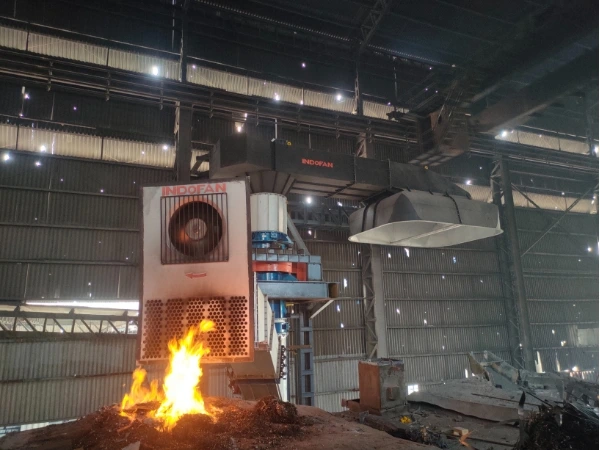

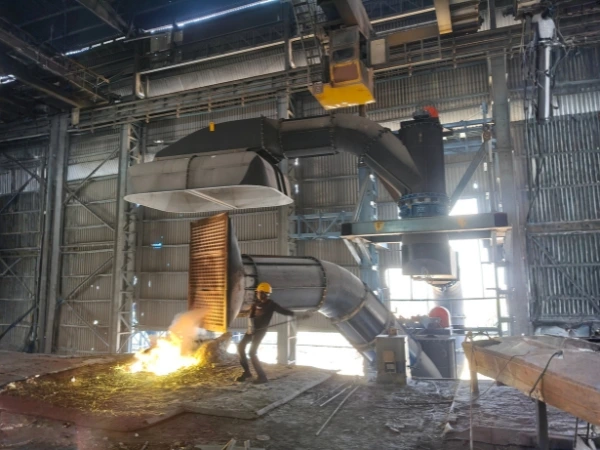

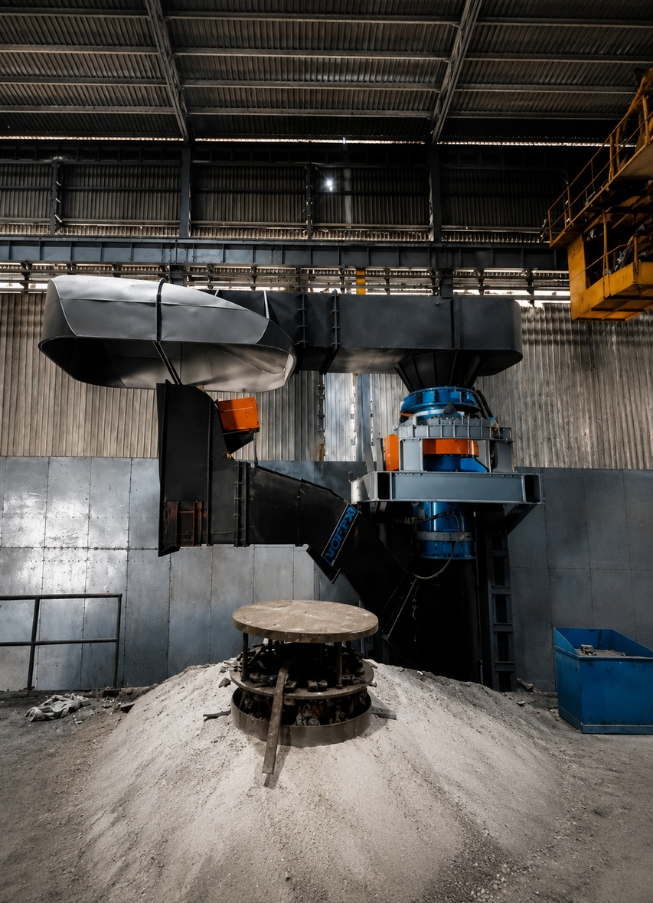

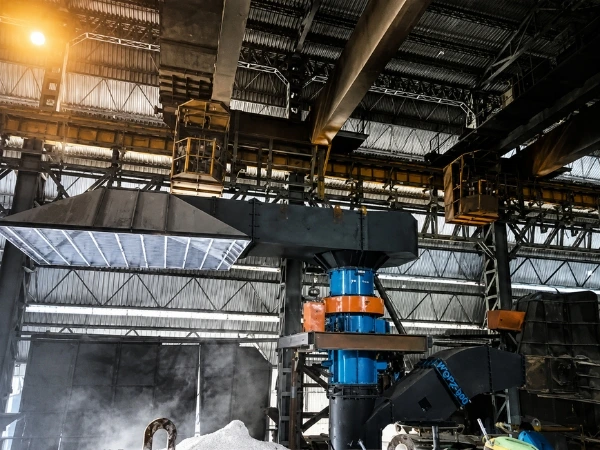

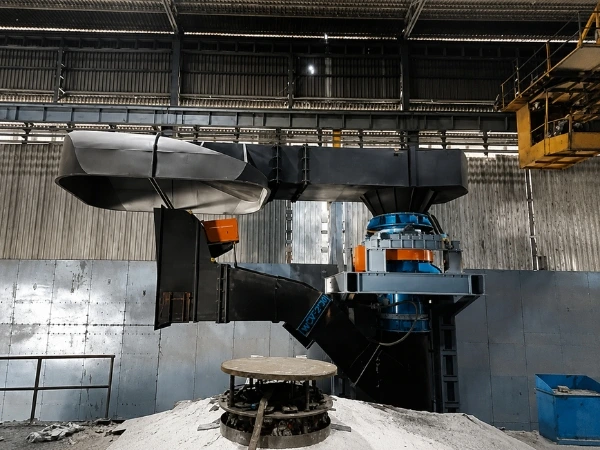

Advanced Canopy Hood With Side Draft
A Combined Side Draft Hood & Top Canopy Hood System is an advanced industrial fume extraction solution specifically developed for induction furnace applications where different process stages generate emissions in different directions and intensities.
The system combines the advantages of a Side Draft Hood during the melting process and a Top Canopy Hood during slag removal and metal tapping operations, ensuring maximum fume capture efficiency throughout the furnace operating cycle.
During the melting stage, most fumes and smoke are generated at the furnace mouth and tend to move horizontally due to furnace turbulence and shop-floor air disturbances. The Side Draft Hood is strategically positioned adjacent to the furnace to capture these emissions directly at the source before they disperse into the workplace.
Optimized Multi-Stage Fume Capture Technology: How do they work?
During slag removal and molten metal tapping operations, a significant quantity of hot fumes, smoke, and gases naturally rise upward. The Top Canopy Hood installed above the furnace effectively captures these emissions through thermal uplift and induced draft, ensuring comprehensive fume collection during these critical operations.
The collected contaminants are conveyed through a ducting network to a dust collector, bag filter, wet scrubber, or other air pollution control equipment where particulate matter and harmful pollutants are removed before clean air is safely discharged into the atmosphere.
Reliable Industrial Fume Extraction Solutions
INDOFAN Combined Side Draft Hood & Top Canopy Hood Systems are specially engineered for induction furnaces, foundries, and metal melting industries requiring high-performance fume extraction throughout the entire production cycle.
By utilizing two dedicated hood arrangements for different operating conditions, the system provides significantly improved fume capture efficiency compared to conventional single-hood extraction systems. This integrated approach minimizes fugitive emissions and enhances workplace air quality.
Key Features of Top Canopy
and; Side Draft Hood Systems
These combined hood systems are specially designed for induction furnace applications, offering both Top Canopy and Side Draft configurations for comprehensive fume capture.
Application & Design
Specially designed for induction furnace operations, featuring a combination of Side Draft Hood and Top Canopy Hood for comprehensive coverage.
Fume Extraction Efficiency
Provides efficient fume extraction during melting and effective smoke collection during slag removal and metal tapping.
Emission Control
Ensures reduced fugitive emissions, maintaining cleaner air and safer working conditions.
Construction
Built with heavy-duty industrial materials to withstand demanding furnace environments.
Customization
Custom-designed to suit specific furnace layouts, ensuring optimal performance.
Operation & Reliability
Engineered for continuous-duty use, delivering long-term reliable performance in industrial applications.
Advanced Dual Hood Technology for Complete Furnace Emission Control
Engineered for Complete Furnace Cycle Extraction
INDOFAN Combined Hood Systems effectively capture emissions generated during:
- • Furnace charging operations
- • Metal melting processes
- • Refining operations
- • Slag removal activities
- • Molten metal tapping
- • Pouring operations
- • General furnace operation
The system is specifically designed to address varying emission patterns encountered during different stages of furnace operation.
Superior Dual-Capture Technology
The Combined Side Draft and Top Canopy Hood System provides effective emission control throughout the furnace operation cycle.
The Side Draft Hood captures smoke and fumes generated during melting directly at the source, while the Top Canopy Hood collects rising hot gases and emissions during slag removal and molten metal tapping.
Together, both hoods ensure efficient contaminant capture, improved workplace air quality, and compliance with environmental standards.
Key Benefits and Features
Engineered for efficient fume capture from both upward and lateral emissions, ensuring improved air quality, high collection efficiency, and reliable industrial ventilation performance.
- Dual hood configuration for complete process coverage
- Side draft extraction for melting stage emissions
- Top canopy extraction for tapping and slag removal operations
- Improved fume capture efficiency
- Optimized airflow distribution
- Reduced impact of shop-floor air disturbances
- Custom-engineered design
- Easy integration with air pollution control systems
- Robust and low-maintenance construction
- Higher overall fume collection efficiency
- Effective extraction throughout the complete furnace cycle
- Reduced workplace smoke accumulation
- Improved employee health and safety
- Enhanced workplace visibility
- Better environmental compliance
- Reduced fugitive emissions
- Improved plant cleanliness
- Increased operational efficiency
- Long service life with minimal maintenance
Why Choose Indofans for Top Canopy Hood with Side Draft Hood?
Experience and Evaluation
With decades of expertise in industrial ventilation and air pollution control systems, INDOFAN delivers customized fume extraction solutions designed specifically for induction furnace and metal melting applications.
Our engineering team evaluates furnace capacity, operational practices, tapping arrangements, plant layout, and emission characteristics to develop the most effective combination of side draft and canopy extraction systems.
Industry Used
Combined Side Draft Hood & Top Canopy Hood Systems are widely used in steel melting, alloy production, copper recycling, aluminium recycling, foundry operations, and other metal processing industries.
INDOFAN Combined Side Draft Hood & Top Canopy Hood Systems provide superior emission control, dependable performance, and long-term operational reliability.
Frequently Asked Questions
What is a canopy hood with side draft used for?
A canopy hood with side draft is used for efficient smoke extraction during furnace melting, tapping, and molten metal transfer operations, ensuring reliable industrial exhaust performance and safer working environments consistently.
What is the suction efficiency of this industrial hood system?
The industrial hood system provides suction efficiency between 80% and 90%, depending on site conditions, ensuring reliable smoke removal, improved ventilation, and consistent performance across demanding furnace operations effectively.
Can magnet charging be done without moving the hood?
Yes, magnet charging operations can be performed conveniently without moving the powered side draft hood, ensuring operational flexibility, uninterrupted furnace performance, and efficient smoke extraction during industrial processes consistently.
Does this fume extraction system support manipulator operations?
Yes, poker rod and manipulator operations can be performed without moving the fume extraction system, ensuring operational convenience, improved furnace handling, and reliable smoke removal during industrial processes effectively.
What are the advantages of this dust control hood?
This dust control hood reduces secondary pollution control investment, improves smoke handling efficiency during melting and tapping periods, and ensures reliable industrial exhaust performance across furnace operations consistently and effectively.
