Motorized Fan Rotating Arrangement Solutions

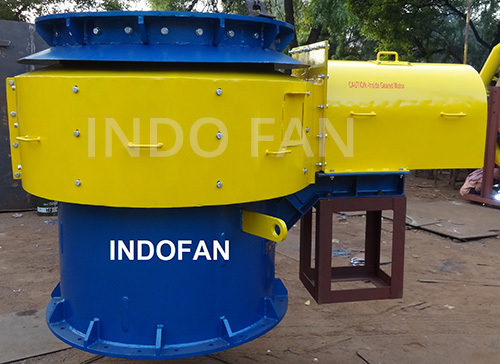

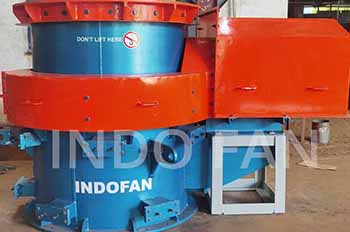

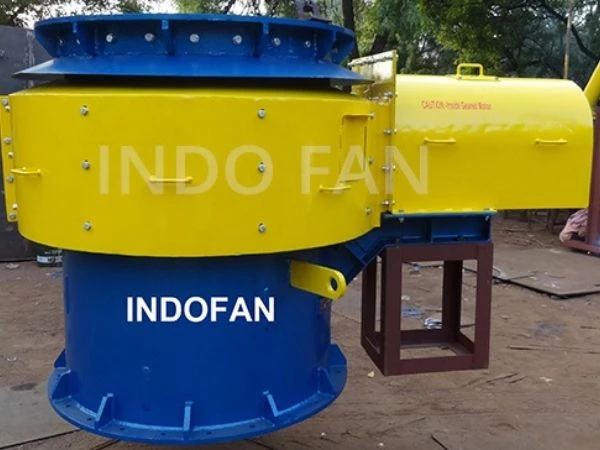

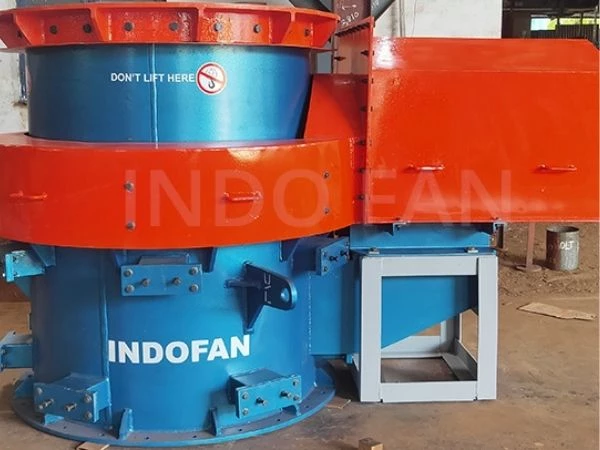

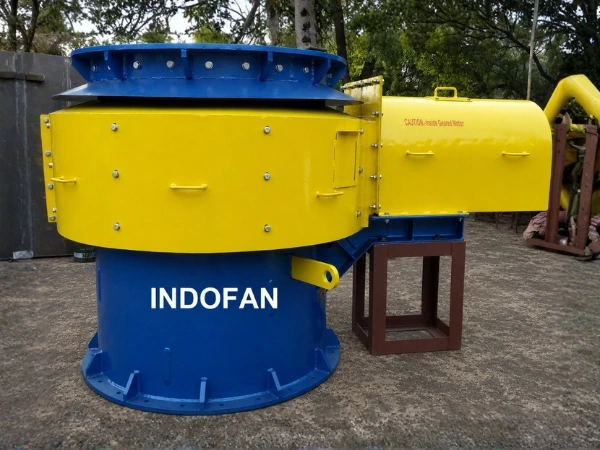

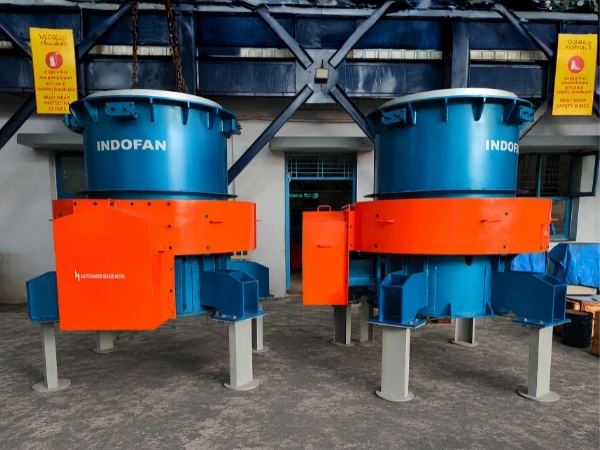

A Motorized Rotating Hood Arrangement is a specialized positioning system designed for industrial fume extraction hoods used in induction furnaces, foundries, and metal melting operations. The arrangement enables precise horizontal rotation of the extraction hood, allowing operators to position the hood accurately over the emission source during different stages of furnace operation.
As charging, melting, slag removal, and metal tapping occur at varying locations, the motorized arrangement allows flexible hood movement to maintain optimum fume capture. This ensures improved collection efficiency, reduced fugitive emissions, and enhanced operational flexibility throughout the process cycle.
Precision Hood Positioning and Control : How do they work?

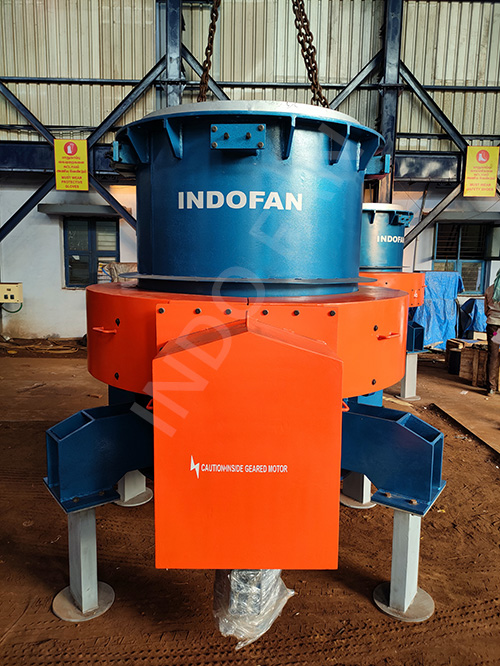

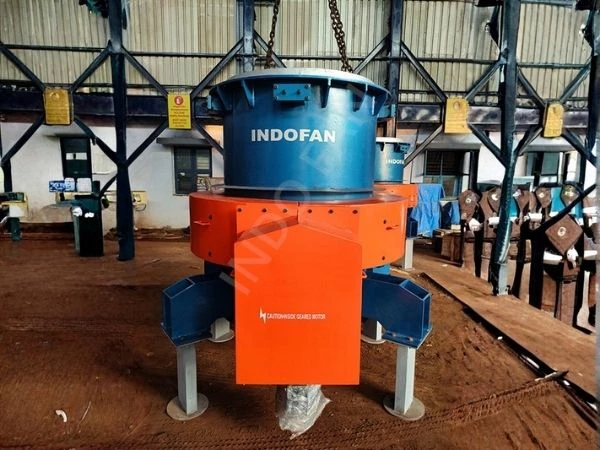

The system consists of a heavy-duty structural support, rotating mechanism, drive assembly, geared motor, and Variable Frequency Drive (VFD) control system. The hood can be smoothly rotated around the furnace axis using a wired remote-control unit, enabling operators to adjust the hood position safely and conveniently from a distance.
The arrangement is suitable for installation with Powered Side Draft Hoods, Canopy Hoods, and other customized fume extraction systems. By ensuring proper hood positioning at all times, the system significantly improves source-capture performance and reduces fugitive emissions.
Reliable Hood Positioning Solutions
INDOFAN Motorized Rotating Hood Arrangements are specially engineered for induction furnace applications requiring flexible and efficient hood positioning. Designed for continuous industrial service, these systems provide smooth operation, precise control, and reliable performance under demanding operating conditions.
The rotating arrangement allows the hood to be accurately positioned above or adjacent to the furnace depending on the process stage, helping maintain effective smoke and fume extraction throughout the production cycle.
Product Specifications of
Rotating Arrangement Systems

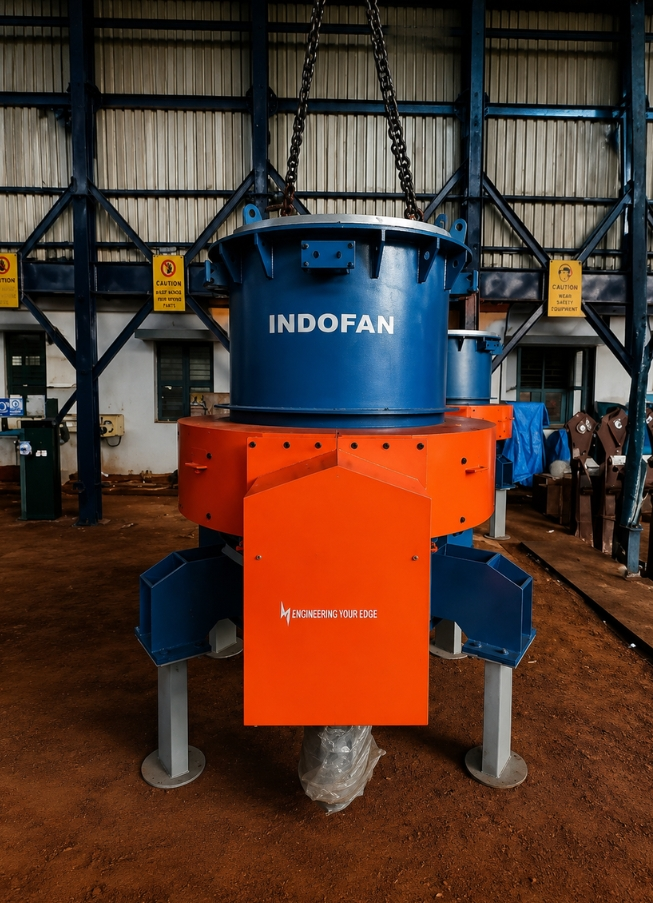

Motorized Rotating Arrangement Systems are designed for induction furnace applications, enabling precise hood positioning for effective fume extraction.
Application
Designed specifically for induction furnace operations to enhance emission control.
Positioning System
Features a motorized hood positioning system for accurate alignment.
Rotation Capability
Allows horizontal rotation up to 355° for wide coverage.
Drive Mechanism
Powered by a heavy-duty geared motor drive for robust performance.
Control Options
Equipped with Variable Frequency Drive (VFD) for speed control and wired remote operation for convenience.
Compatibility
Suitable for both Side Draft Hoods and Top Canopy Hoods.
Precision
Ensures smooth and precise positioning during furnace operations.
Operation
Built for continuous-duty industrial use, minimizing downtime.
Construction
Designed with robust structural materials for durability in demanding environments.
Advanced Rotational Control for Hood Positioning
Engineered for Operational Flexibility
INDOFAN Rotating Hood Arrangements support efficient hood positioning during:
- • Furnace charging operations
- • Metal melting processes
- • Slag removal activities
- • Molten metal tapping
- • Pouring operations
- • Furnace maintenance activities
- • General furnace operation
The system enables quick hood movement without interrupting production, improving operational convenience and overall extraction performance.
Advanced Rotation Technology
The rotating arrangement is driven by a heavy-duty geared motor coupled with a Variable Frequency Drive (VFD), providing smooth acceleration, deceleration, and precise positioning. Designed for blower drive system industrial ventilation fans for factory applications, operators can control the hood rotation speed and position using a wired remote-control device.
The system can rotate up to approximately 355° around the furnace axis, allowing the hood to be positioned at virtually any required location while maintaining stable and reliable operation.
Key Benefits and Features
Precision-engineered rotating arrangement designed for smooth operation, accurate positioning, and reliable performance in industrial ventilation applications.
- Accurate hood positioning around the furnace
- Motorized rotation with VFD speed control
- Improved fume capture efficiency
- Heavy-duty industrial design
- Safe remote operation
- Reduced manual handling requirements
- Custom-engineered to suit site layout
- Easy integration with fume extraction systems
- Optimum hood positioning for maximum extraction efficiency
- Improved smoke and fume capture performance
- Enhanced operator safety
- Increased operational flexibility
- Better environmental compliance
- Reduced manpower requirements
- Increased equipment productivity
- Long service life and dependable operation
Why Choose Indofans for Rotating Arrangements?
Experience and Evaluation
With decades of experience in industrial ventilation and air pollution control systems, INDOFAN delivers customized fan rotating arrangement solutions designed specifically for induction furnace and metal melting applications.
Our engineering team evaluates furnace configuration, operating practices, hood dimensions, and plant layout to develop the most effective rotating arrangement for your facility.
Equipment Applications
INDOFAN Motorized Rotating Hood Arrangements are widely used with Powered Side Draft Hoods, Canopy Hoods, and custom fume extraction systems across metal melting and process industries.
These systems provide precise positioning, superior operational flexibility, and long-term reliability for demanding industrial environments.
Frequently Asked Questions
What is a rotating arrangement used for?
A rotating arrangement is used for swivelling industrial hoods between crucibles in induction furnace operations, ensuring efficient smoke extraction, ventilation system performance, and improved flexibility across demanding industrial applications effectively.
Which hood systems are compatible with rotating arrangements?
The rotating arrangement is compatible with side draft hoods and canopy hood systems, providing reliable furnace ventilation solutions and enhanced operational flexibility for industrial fan components in industrial exhaust management across multiple applications consistently.
Are mechanized and manual rotation options available?
Yes, rotating arrangements are available in both mechanized and manual operation models, offering industries flexibility, convenience, and reliable hood movement solutions for furnace exhaust and ventilation system applications effectively.
How does the blower drive system improve operations?
The blower drive system enables smooth hood movement, operational convenience, and improved smoke extraction efficiency, ensuring reliable furnace ventilation performance and enhanced industrial exhaust management across demanding operational environments consistently.
Where are industrial fan rotating arrangements commonly installed?
Industrial fan rotating arrangements are commonly installed in foundries, steel plants, furnace systems, and ventilation applications, ensuring efficient hood positioning, reliable exhaust performance, and improved airflow management across industrial environments effectively.
